Colson 4 Series Medium Heavy Duty Casters

Standard Features: Zinc plate finish Double ball raceway 1/2″ zerk axle 1/4″ top plate 5/8″ rivet kingpin Grease fitting in raceway with “Colson 45” multi temp grease.

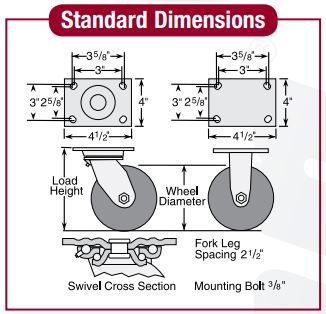

Top Plate size: 4″ x 4-1/2″  Bolt holes: 3″ x 3″ slotted 2-5/8″ x 3-5/8″

Options: (add to end of P/N when ordering)

4-06109-939-BRK2

BRK2 Tech lock brake

4-Ser_rigid-techlock-brk

BRK2 Rigid Tech lock brake 6″ only

4Ser_performa flat_top lock brk

BRK7 Top lock brake available on rigid models

4-06109-649-7-BRK4

BRK4 Total lock brake

4Ser-swivlock-blkperforma-weld-on

MTG51 welded swivel lock/MTG61 Field installable

4Ser_SS_footActswivelLock

MTG81 Foot activated swivel lock

Read Full Text »

REQUEST A QUOTE
SELECT SKUTypeMaterialWheel Diameter (Inch)Tread Width (Inch)Load Capacity (lbs)Load Height (Inch)Swivel Radius (Inch)Wheel Bearing TypePrice
4.03109.539RigidMaxim3-1/427005-1/43-3/16RollerQUOTE
4.03108.539RigidMaxim3-1/427005-1/4N/ARollerQUOTE
4.03109.339SwivelPhenolic3-1/427005-1/43-3/16RollerQUOTE
4.03108.339RigidPhenolic3-1/427005-1/4N/ARollerQUOTE
4.04109.459.2SwivelPerforma Rubber (Flat Black)4.0024005-5/83-9/16RollerQUOTE
4.04109.539SwivelMaxim4.0027005-5/83-9/16RollerQUOTE
4.04109.459 CONDSwivelPerforma Rubber (Conductive Flat)4.0023005-5/83-9/16RollerQUOTE
4.04109.139SwivelCast Iron4.00210005-5/83-9/16RollerQUOTE
4.04109.649.7SwivelMoldon Rubber (Cast Iron Core)4.0024005-5/83-9/16RollerQUOTE
4.04109.339SwivelPhenolic4.0027005-5/83-9/16RollerQUOTE
4.04109.459SwivelPerforma Rubber (Flat Grey)4.0024005-5/83-9/16RollerQUOTE
4.04109.839 ENSwivelEndura Solid Elastomer4.00210005-5/83-9/16RollerQUOTE
4.04109.929SwivelPolyurethane Hi-Tech4.0026005-5/83-9/16RollerQUOTE
4.04109.949.7SwivelMoldon Polyurethane (Cast iron Core)4.0027005-5/83-9/16RollerQUOTE
4.04109.839 HTSwivelThermo4.0028005-5/83-9/16RollerQUOTE
4.04108.949.7RigidMoldon Polyurethane (Cast iron Core)4.0027005-5/8N/ARollerQUOTE
4.04109.839SwivelPolyolefin4.0025005-5/83-9/16RollerQUOTE
4.04109.739SwivelV-Groove4.0028005-5/83-9/16RollerQUOTE
4.04109.939SwivelMoldon Polyurethane (Aluminum Core)4.0027005-5/83-9/16RollerQUOTE
4.04108.459 CONDRigidPerforma Rubber (Conductive Flat)4.0023005-5/8N/ARollerQUOTE
4.04108.459.2RigidPerforma Rubber (Flat Black)4.0024005-5/8N/ARollerQUOTE
4.04108.459RigidPerforma Rubber (Flat Grey)4.0024005-5/8N/ARollerQUOTE
4.04108.339RigidPhenolic4.0028005-5/8N/ARollerQUOTE
4.04108.939RigidMoldon Polyurethane (Aluminum Core)4.0027005-5/8N/ARollerQUOTE
4.04108.539RigidMaxim4.0028005-5/8N/ARollerQUOTE
4.04108.139RigidCast Iron4.00210005-5/8N/ARollerQUOTE
4.04108.929RigidPolyurethane Hi-Tech4.0026005-5/8N/ARollerQUOTE
4.04108.649.7RigidMoldon Rubber (Cast Iron Core)4.0024005-5/8N/ARollerQUOTE
4.04108.839 HTRigidThermo4.0028005-5/8N/ARollerQUOTE
4.04108.839 ENRigidEndura Solid Elastomer4.00210005-5/8N/ARollerQUOTE
4.04108.739RigidV-Groove4.0028005-5/8N/ARollerQUOTE
4.04108.839RigidPolyolefin4.0025005-5/8N/ARollerQUOTE
4.05109.459.2SwivelPerforma Rubber (Flat Black)5.0025006-1/24-1/4RollerQUOTE
4.05109.539SwivelMaxim5.00210006-1/24-1/4RollerQUOTE
4.05109.339SwivelPhenolic5.00210006-1/24-1/4RollerQUOTE
4.05109.239SwivelForged Steel5.00212506-1/24-1/4RollerQUOTE
4.05109.649.7SwivelMoldon Rubber (Cast Iron Core)5.0024006-1/24-1/4RollerQUOTE
4.05109.459SwivelPerforma Rubber (Flat Grey)5.0025006-1/24-1/4RollerQUOTE
4.05109.459 CONDSwivelPerforma Rubber (Conductive Flat)5.0023256-1/24-1/4RollerQUOTE
4.05109.839 HTSwivelThermo5.00210006-1/24-1/4RollerQUOTE
4.05109.139SwivelCast Iron5.00210006-1/24-1/4RollerQUOTE
4.05109.949.7SwivelMoldon Polyurethane (Cast iron Core)5.00210006-1/24-1/4RollerQUOTE
4.05109.939.3SwivelMoldon Nylon5.00210006-1/24-1/4RollerQUOTE
4.05109.939SwivelMoldon Polyurethane (Aluminum Core)5.00210006-1/24-1/4RollerQUOTE
4.05109.839 ENSwivelEndura Solid Elastomer5.00210006-1/24-1/4RollerQUOTE
4.05109.929SwivelPolyurethane Hi-Tech5.0027506-1/24-1/4RollerQUOTE
4.05109.839SwivelPolyolefin5.0026506-1/24-1/4RollerQUOTE
4.05108.649.7RigidMoldon Rubber (Cast Iron Core)5.0024006-1/2N/ARollerQUOTE
4.05108.459 CONDRigidPerforma Rubber (Conductive Flat)5.0023256-1/2N/ARollerQUOTE
4.05108.459.2RigidPerforma Rubber (Flat Black)5.0025006-1/2N/ARollerQUOTE
4.05108.459RigidPerforma Rubber (Flat Grey)5.0025006-1/2N/ARollerQUOTE
4.05108.339RigidPhenolic5.00210006-1/2N/ARollerQUOTE
4.05108.139RigidCast Iron5.00210006-1/2N/ARollerQUOTE
4.05108.239RigidForged Steel5.00212506-1/2N/ARollerQUOTE
4.05108.949.7RigidMoldon Polyurethane (Cast iron Core)5.00210006-1/2N/ARollerQUOTE
4.05108.539RigidMaxim5.00210006-1/2N/ARollerQUOTE
4.05108.939RigidMoldon Polyurethane (Aluminum Core)5.00210006-1/2N/ARollerQUOTE
4.05108.939.3RigidMoldon Nylon5.00210006-1/2N/ARollerQUOTE
4.05108.839RigidPolyolefin5.0026506-1/2N/ARollerQUOTE
4.05108.929RigidPolyurethane Hi-Tech5.0027506-1/2N/ARollerQUOTE
4.05108.839 HTRigidThermo5.00210006-1/2N/ARollerQUOTE
4.05108.839 ENRigidEndura Solid Elastomer5.00210006-1/2N/ARollerQUOTE
4.06108.139RigidCast Iron6.00212007-1/2N/ARollerQUOTE
4.06108.239RigidForged Steel6.00212507-1/2N/ARollerQUOTE
4.06109.459.2SwivelPerforma Rubber (Flat Black)6.0026007-1/25RollerQUOTE
4.06109.539SwivelMaxim6.00212007-1/25RollerQUOTE
4.06109.559SwivelPerforma Rubber (Round Gray)6.0024507-1/25RollerQUOTE
4.06109.459 CONDSwivelPerforma Rubber (Conductive Flat)6.0024107-1/25RollerQUOTE
4.06109.459SwivelPerforma Rubber (Flat Grey)6.0026007-1/25RollerQUOTE
4.06109.239SwivelForged Steel6.00212507-1/25RollerQUOTE
4.06109.339SwivelPhenolic6.00212007-1/25RollerQUOTE
4.06109.559 CONDSwivelPerforma Rubber (Conductive Round)6.0024107-1/25RollerQUOTE
4.06109.649.7SwivelMoldon Rubber (Cast Iron Core)6.0024507-1/25RollerQUOTE
4.06109.939.3SwivelMoldon Nylon6.00212007-1/25RollerQUOTE
4.06109.949.7SwivelMoldon Polyurethane (Cast iron Core)6.00212007-1/25RollerQUOTE
4.06109.929SwivelPolyurethane Hi-Tech6.0029007-1/25RollerQUOTE
4.06109.839 ENSwivelEndura Solid Elastomer6.00211007-1/25RollerQUOTE
4.06109.739SwivelV-Groove6.00212007-1/25RollerQUOTE
4.06109.839SwivelPolyolefin6.0027007-1/25RollerQUOTE
4.06109.139SwivelCast Iron6.00212007-1/25RollerQUOTE
4.06109.939SwivelMoldon Polyurethane (Aluminum Core)6.00212007-1/25RollerQUOTE
4.06108.539RigidMaxim6.00212007-1/2N/ARollerQUOTE
4.06108.559RigidPerforma Rubber (Round Gray)6.0024507-1/2N/ARollerQUOTE
4.06108.459.2RigidPerforma Rubber (Flat Black)6.0026007-1/2N/ARollerQUOTE
4.06108.459 CONDRigidPerforma Rubber (Conductive Flat)6.0024107-1/2N/ARollerQUOTE
4.06108.949.7RigidMoldon Polyurethane (Cast iron Core)6.00212007-1/2N/ARollerQUOTE
4.06108.339RigidPhenolic6.00212007-1/2N/ARollerQUOTE
4.06108.559 CONDRigidPerforma Rubber (Conductive Round)6.0024107-1/2N/ARollerQUOTE
4.06108.459RigidPerforma Rubber (Flat Grey)6.0026007-1/2N/ARollerQUOTE
4.06108.939.3RigidMoldon Nylon6.00212007-1/2N/ARollerQUOTE
4.06108.939RigidMoldon Polyurethane (Aluminum Core)6.00212007-1/2N/ARollerQUOTE
4.06108.649.7RigidMoldon Rubber (Cast Iron Core)6.0024507-1/2N/ARollerQUOTE
4.06108.929RigidPolyurethane Hi-Tech6.0029007-1/2N/ARollerQUOTE
4.06108.739RigidV-Groove6.00212007-1/2N/ARollerQUOTE
4.06108.839 ENRigidEndura Solid Elastomer6.00211007-1/2N/ARollerQUOTE
4.06108.839RigidPolyolefin6.0027007-1/2N/ARollerQUOTE
4.08199.459.2SwivelPerforma Rubber (Flat Black)8.0026759-1/26-1/2RollerQUOTE
4.08199.539SwivelMaxim8.00212509-1/26-1/2RollerQUOTE
4.08199.559SwivelPerforma Rubber (Round Gray)8.0026009-1/26-1/2RollerQUOTE
4.08199.339SwivelPhenolic8.00212509-1/26-1/2RollerQUOTE
4.08199.139SwivelCast Iron8.00212509-1/26-1/2RollerQUOTE
4.08199.459SwivelPerforma Rubber (Flat Grey)8.0026759-1/26-1/2RollerQUOTE
4.08199.459 CONDSwivelPerforma Rubber (Conductive Flat)8.0025009-1/26-1/2RollerQUOTE
4.08199.839 ENSwivelEndura Solid Elastomer8.00212009-1/26-1/2RollerQUOTE
4.08198.949.7RigidMoldon Polyurethane (Cast iron Core)8.00212509-1/2N/ARollerQUOTE
4.08199.939.3SwivelMoldon Nylon8.00212509-1/26-1/2RollerQUOTE
4.08199.939SwivelMoldon Polyurethane (Aluminum Core)8.00212509-1/26-1/2RollerQUOTE
4.08199.929SwivelPolyurethane Hi-Tech8.00210009-1/26-1/2RollerQUOTE
4.08199.649.7SwivelMoldon Rubber (Cast Iron Core)8.0025009-1/26-1/2RollerQUOTE
4.08199.839SwivelPolyolefin8.0029009-1/26-1/2RollerQUOTE
4.08199.559 CONDSwivelPerforma Rubber (Conductive Round)8.0025009-1/26-1/2RollerQUOTE
4.08198.559RigidPerforma Rubber (Round Gray)8.0026009-1/2N/ARollerQUOTE
4.08198.459 CONDRigidPerforma Rubber (Conductive Flat)8.0025009-1/2N/ARollerQUOTE
4.08198.459.2RigidPerforma Rubber (Flat Black)8.0026759-1/2N/ARollerQUOTE
4.08198.459RigidPerforma Rubber (Flat Grey)8.0026759-1/2N/ARollerQUOTE
4.08198.339RigidPhenolic8.00212509-1/2N/ARollerQUOTE
4.08199.949.7SwivelMoldon Polyurethane (Cast iron Core)8.00212509-1/26-1/2RollerQUOTE
4.08198.139RigidCast Iron8.00212509-1/2N/ARollerQUOTE
4.08198.539RigidMaxim8.00212509-1/2N/ARollerQUOTE
4.08198.559 CONDRigidPerforma Rubber (Conductive Round)8.0025009-1/2N/ARollerQUOTE
4.08198.929RigidPolyurethane Hi-Tech8.00210009-1/2N/ARollerQUOTE
4.08198.939RigidMoldon Polyurethane (Aluminum Core)8.00212509-1/2N/ARollerQUOTE
4.08198.839 ENRigidEndura Solid Elastomer8.00212009-1/2N/ARollerQUOTE
4.08198.839RigidPolyolefin8.0029009-1/2N/ARollerQUOTE
4.08198.649.7RigidMoldon Rubber (Cast Iron Core)8.0025009-1/2N/ARollerQUOTE
4.08198.939.3RigidMoldon Nylon8.00212509-1/2N/ARollerQUOTE
